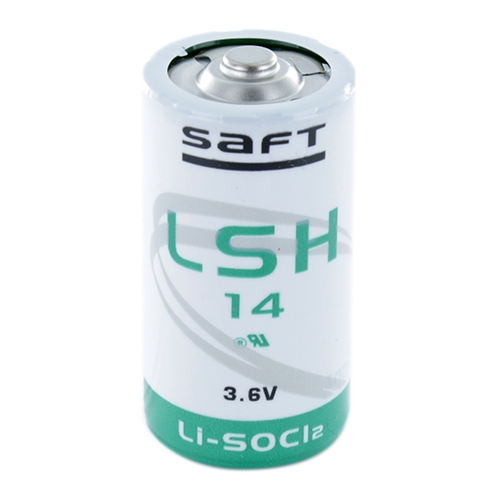

ถ่าน3.6Vแบตเตอรี่ยี้ห้อSAFTรุ่นLSH14 3.6 V Li-SOCl2 Lithium Battery size C P/N:SAFT-LSH14
Specification
Nominal capacity : 5.8 Ah
Open circuit voltage (at +20°C) : 3.67 V
Nominal voltage (at 1mA + 20°C) : 3.6 V
Nominal energy : 27.72 Wh
Maximum recommended continuous current : 1300 mA
Storage (recommended) : +30°C (+86°F) max
Operating temperature range : - 60°C/+85°C
Features:
- High pulse optimised
- Ul recognised
- Non-flammable electrolyte
- Cells non-pressurised at room temperature
- Corrosion proof containers
- Hermeticity guaranteed up to 110°C
- Safety vents, fuses
- Long shelf life when storage conditions respected.
Physical characteristics
Chemistry Lithium Thionyl Chloride
Capacity : 5.8Ah
Voltage : 3.6V
Size : C
Dimensions : 26.2 x 49.9 mm
Weight : 51 g
